In your scale-out deployment, do your servers allow you to leverage the full potential of your Big Data?
Description

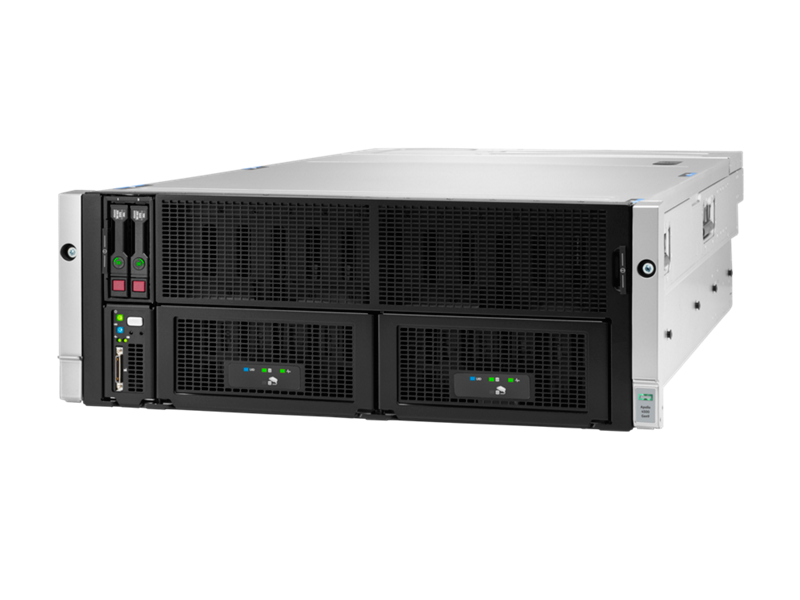

The HPE ProLiant XL450 Gen9 Server gives you the power to optimize your performance requirements for Hadoop or object storage workloads using up to 2 Intel Xeon E5-2600v3 processors, and up to 512 GB (in 16 DIMMs) of memory per server. For ideal performance in analytics workloads, the HPE ProLiant XL450 Gen9 Server offers up to 16 cores per processor and up to 135W. Each server also features up to 4 PCIe Gen3 slots and a FlexibleLOM, enabling you to adapt to the I/O requirements of your workloads now and into the future.
In addition, the HPE ProLiant XL450 Gen9 Server offers HPE ProLiant management software like HPE Integrated Lights-Out 4 (iLO4) to deploy, manage, and utilize valuable data center resources. Whether you are running object storage, Hadoop, or other data intensive applications, you can deploy your scale-out XL450 architecture with confidence.
Capacity Depends on configuration (288 TB raw maximum)
Host interface 4 x 1GbE standard
Protocol supported SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
Replication support Microsoft Distributed File System Replication (DFS-R)–supports up to 100TB
Storage expansion options All HPE StoreEasy models support external expansion using HPE MSA SAN Storage or HPE D3X10, HPE D6020, and HPE D8000 Disk Enclosure product families. A Fibre Channel, SAS, or iSCSI connection must be added to support HPE MSA SAN Storage (note that high-availability clustering is not supported) while a Smart Array controller with external ports must be added to support external Disk Enclosures.
Compatible operating systems Microsoft® Windows® Server IoT 2019 for Storage Standard Edition is pre-installed. Client operating systems supported include Microsoft® Windows®, Mac OS, Linux®, and Unix.
Management features HPE StoreEasy Management Console version;
HPE iLO5;
HPE Smart Storage Administrator;
Windows Server® Manager and utilities
Drive description Does not include data drives standard. 12 x LFF (3.5″) hot-plug front drive bays standard; 4 x LFF hot-plug mid-chassis drive cage is optional
Clustering support Not supported on HPE StoreEasy 1000 Storage appliances
HD type Hot-plug SATA or SAS, LFF (3.5″)
Snapshot support Microsoft Volume Shadow Copy Service (VSS)
Form factor (fully configured) 2U rack mount
Warranty 3/3/3 system warranty includes three years of parts, three years of labor, three years of onsite support coverage, next business day response. Software media is warranted to be free of physical defect for a period of 90 days from delivery.
Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home
Weight 54 lb maximum (without rear drives)
Weight 24.5 kg maximum (without rear drives)
Dimensions 3.44 x 17.54 x 28.75 in (without bezel)
Dimensions 8.73 x 44.54 x 73.02 cm (without bezel)
Detailed product description Comes with Microsoft® Windows Server IoT 2019 for Storage Standard Edition with HPE StoreEasy Management Console pre-installed, and features an Intel® Xeon-Bronze 3204 processor, 16GB of memory, 4 x 1GbE ports, redundant power and fans, a 2U rackmount form factor, HPE Smart Array P816i-a storage controller, and 12 LFF (3.5″) drive bays standard (with an option to add another 4 x LFF bays with the optional mid-chassis cage).
System configuration(s) Up to 16 DIMMs
Up to 2 Processors
1 Gb or 10 Gb Ethernet, FlexibleLOM
Power Up to 4 Power Supplies (800W or 1400W Common Slot hot-plug redundant power supply)
Up to 94% Efficiency
AC and DC Options
Form factor 4U
Warranty 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response
