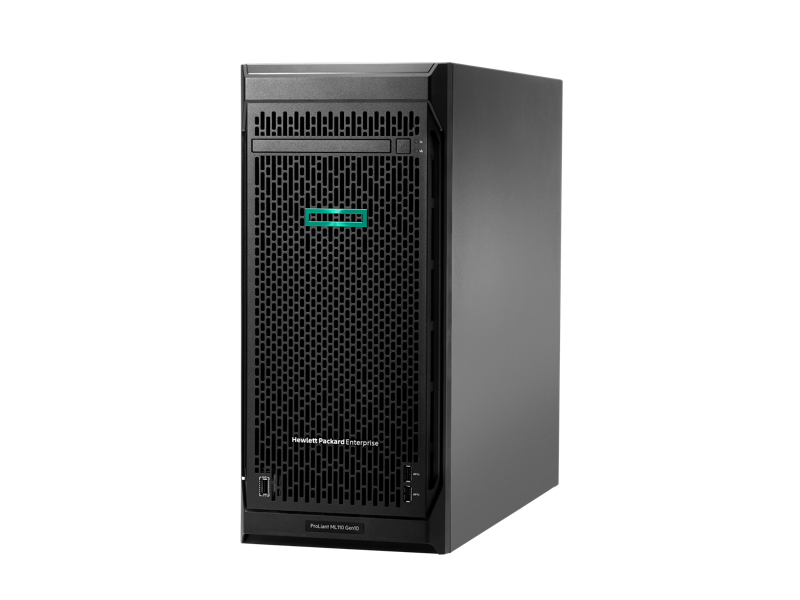

HPE ProLiant ML110 Gen10 server

Description

The HPE ProLiant ML110 Gen10 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the Intel® Xeon® Scalable processor, HPE DDR4 SmartMemory with a maximum capacity of 192 GB, five PCIe slots, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 4.5U of rack space. The HPE ProLiant ML110 Gen10 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.

Specifications

Processor type: Intel® Xeon® Scalable processors

Processor family: Intel® Xeon® Scalable 5000 series, Intel® Xeon® Scalable 4000 series, Intel® Xeon® Scalable 3000 series

Maximum memory: 192 GB

Memory slots: 6 DIMM slots

Drive supported: 8 LFF SAS/SATA/SSD or 16 SFF SAS/SATA/SSD depending on model

Processor core available: 16 or 14 or 12 or 10 or 6 or 8 or 4, depending on model SKU

Processor cache: 19.25 MB L3 – 8.25 MB L3, depending on model SKU

Processor number: 1

Processor speed: 3.8 GHz, maximum depending on processor SKU

Memory type: HPE DDR4 SmartMemory

Optical drive type: Optional DVD-ROM or DVD-RW

Infrastructure management: Included: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition

Expansion slots: 5 PCIe 3.0, for detailed descriptions reference the QuickSpecs

Network controller: HPE Ethernet 1Gb 2-port 332i Adapter

Storage controller: HPE Smart Array S100i SR Gen10 SW RAID

System fan features: Standard 2 fans, none-hot-plug. Optional 4 additional fans, redundancy. Reference QuickSpecs for config. detail.

Form factor: 4.5U Tower

Warranty: 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Weight: 29.82 minimum 55.0 lb maximum

Weight: 13.5 kg minimum 25.0 kg maximum

Dimensions: 17.32 x 7.68 x 18.92 in

Dimensions: 44 x 19.5 x 48.05 cm
