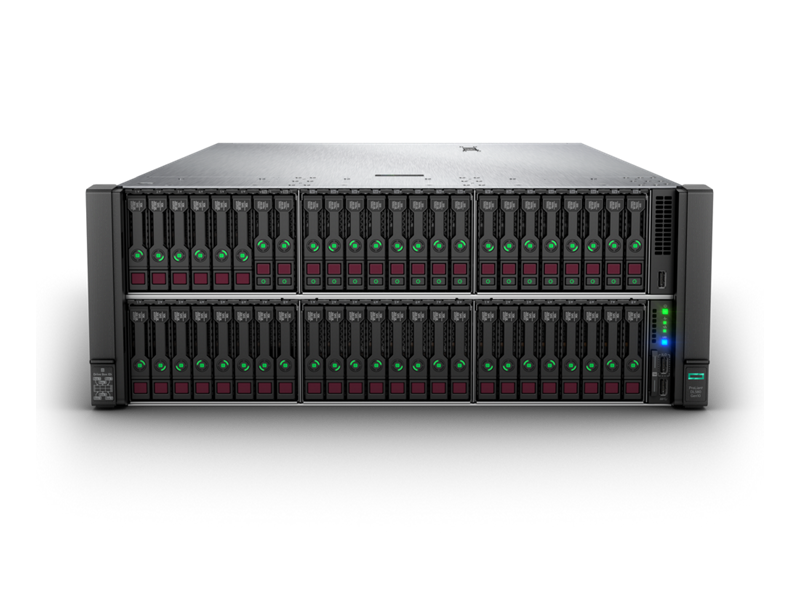

HPE ProLiant DL580 Gen10 server

Description

The HPE ProLiant DL580 Gen10 server is a secure, highly expandable, 4P server with high-performance, scalability and availability in a 4U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 45%1 performance gain, the HPE ProLiant DL580 Gen10 server delivers greater processing power than previous generations. This provides up to 6 TB of 2933 MT/s memory with up to 82% greater memory bandwidth2, up to 16 PCIe 3.0 slots, plus the simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Intel® Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance and better business outcomes for data-intensive workloads. The HPE ProLiant DL580 Gen10 server is the ideal server for business-critical workloads and general 4P data-intensive applications where the right performance is paramount.

Specifications

Processor type: Intel

Processor family: Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series

Processor core available: 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model

Processor cache: 13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, per processor, depending on model

Maximum memory: 6.0 TB with 128 GB DDR4, depending on processor model
12.0 TB with 512 GB Persistent Memory, depending on processor model

Memory slots: 48 DIMM slots maximum

Memory type: HPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE

Drive supported: 48 maximum

Infrastructure management: HPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download) are included Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)

System fan features: 12 (11+1) Hot plug redundant standard

Expansion slots: 16 maximum, for detailed descriptions reference the QuickSpecs

Network controller: Optional FlexibleLOM

Storage controller: HPE Smart Array S100i or HPE Smart Array Controllers, depending on model

Warranty: 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Processor name: Intel® Xeon® Scalable processors

Processor number: 4 or 3 or 2 or 1

Processor speed: 3.6 GHz, maximum depending on processor

Memory, standard: 6.0 TB (48 X 128 GB) LRDIMM;
12.0 TB (24 X 512 GB) Intel® Optane™ persistent memory 100 series for HPE

Included hard drives: None ship standard

Form factor: Rack (4U)

Weight: 114 lb

Weight: 51.71 kg

Dimensions: 6.88 x 17.54 x 29.60 in

Dimensions: 17.47 x 44.55 x 75.18 cm

Intel Xeon and Intel are trademarks of Intel Corporation in the U.S. and other countries. All other third-party trademark(s) is/are property of their respective owner(s).
