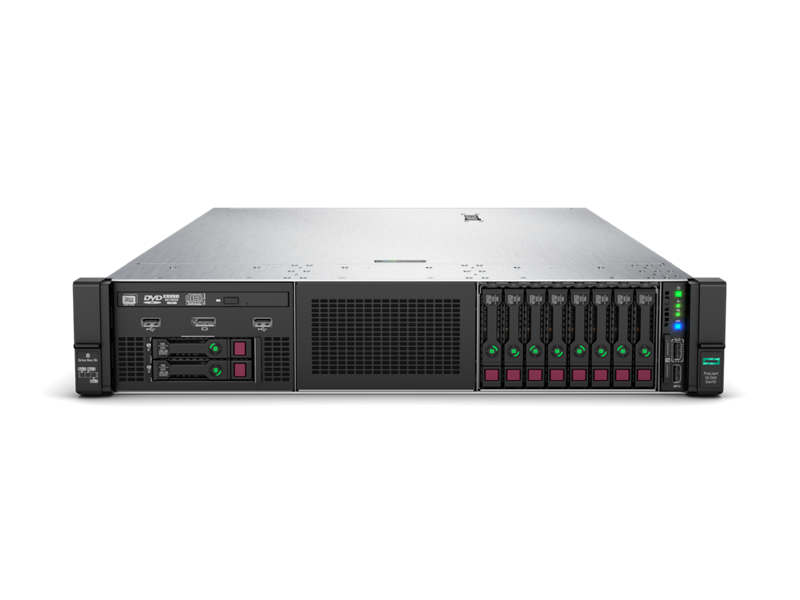

HPE ProLiant DL560 Gen10 server

Description

HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 61% performance gain1, the HPE ProLiant DL560 Gen10 server offers greater processing power, up to 6 TB of faster memory, and I/O of up to eight PCIe 3.0 slots. Intel® Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance for structured data management and analytics workloads. It offers the intelligence and simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). The HPE ProLiant DL560 Gen10 server is the ideal server for business-critical workloads, virtualization, server consolidation, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.

Specifications

Processor type: Intel

Processor family: Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series

Processor core available: 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model

Processor cache: 13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, depending on model

Maximum memory: 6.0 TB with 128 GB DDR4, depending on processor model
12.0 TB with 512 GB Persistent Memory, depending on processor model

Memory slots: 48 DIMM slots maximum

Memory type: HPE DDR4 SmartMemory and HPE Persistent Memory

Drive supported: 8SFF SAS/SATA/SSD or Premium 6SFF and 2 NVMe SAS/SATA/SSD or 8SFF NVMe or 2SFF Premium HDD Front NVMe/SAS/SATA – for detailed configuration options refer to the QuickSpecs

Infrastructure management: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)

System fan features: Hot plug redundant standard

Power supply type: 4 HPE Flexible Slot Power Supplies, maximum depending on model

Expansion slots: 8 maximum, for detail descriptions reference the QuickSpecs

Network controller: Optional FlexibleLOM

Storage controller: HPE Smart Array S100i or HPE Smart Array P408i-a SR Gen10 Controller or HPE Smart Array P816i-a SR Gen10 Controller, depending on model

Warranty: 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Processor name: Intel® Xeon® Scalable processors

Processor number: 4 or 2 or 1

Processor speed: 3.8 GHz, maximum depending on processor

Memory, standard: 6.0 TB (48 X 128 GB) LRDIMM;
12.0 TB (24 X 512 GB) HPE Persistent Memory

Form factor: Rack (2U)

Weight: 75.23 lb

Weight: 34.12 kg

Dimensions: 3.44 x 17.54 x 29.71 in

Dimensions: 8.75 x 44.55 x 75.47 cm
