Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing?
Description

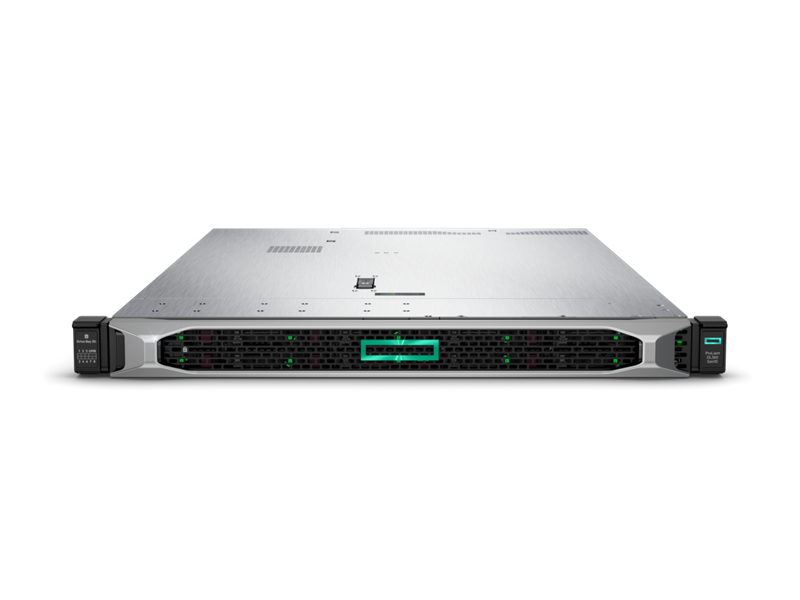

The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel® Xeon® Scalable processor with up to a 60% performance gain1 and 27% increase in cores2, along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB2 with an increase in performance of up to 82%3. With the added performance that Intel® Optane™ persistent memory 100 series for HPE6, HPE NVDIMMs7 and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
Specifications
Processor type: Intel
Processor family: Intel® Xeon® Scalable 8100/8200 series – Intel® Xeon® Scalable 3100/3200 series
Processor core available: 4 to 28 core, depending on model
Processor cache: 8.25 – 38.50 MB L3, depending on processor
Maximum memory: 3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit
Memory slots: 24 DIMM slots
Memory type: HPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE, depending on model
NVDIMM type: HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
NVDIMM rank: Single rank
NVDIMM capacity: 16 GB
Drive supported: 4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model
Infrastructure management: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
System fan features: Hot-plug redundant standard
Expansion slots: 3, for detailed descriptions refer to the QuickSpecs
Network controller: Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model
Storage controller: HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model
Warranty: 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
Processor number: 1 or 2
Processor speed: 3.9 GHz, maximum depending on processor
Memory, standard: 3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) HPE Persistent Memory
Security: Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form factor: 1U
Weight: 28.74 lb minimum, 37 lb maximum
Weight: 13.04 kg minimum, 16.78 kg maximum
Dimensions: SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in
Dimensions: SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm
Intel Xeon and Intel are trademarks of Intel Corporation in the U.S. and other countries. ClearOS is either registered trademark or trademark of ClearCenter Corporation in the United States and/or other countries. All other third-party trademark(s) is/are property of their respective owner(s).
