Do you need to efficiently expand or refresh your IT infrastructure to propel the business?
Description

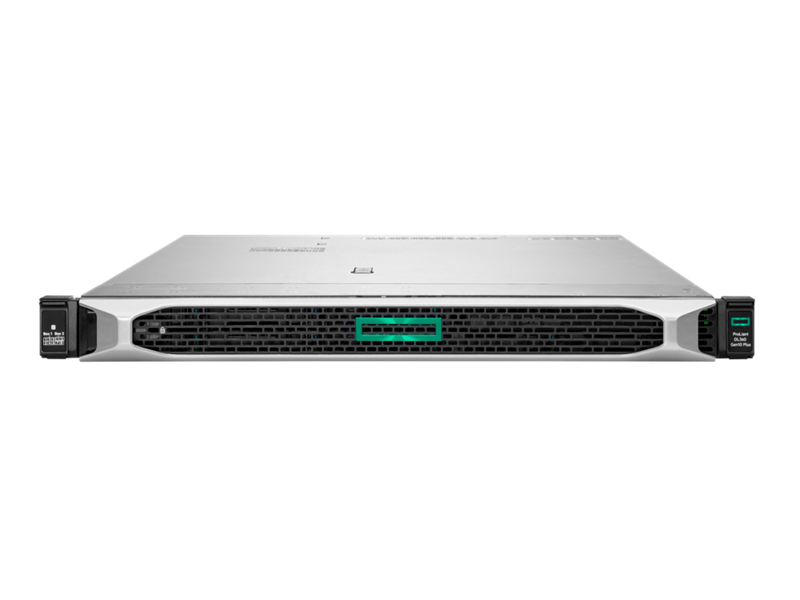

Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.
Powered by 3rd Generation Intel® Xeon® Scalable Processors, delivering up to 40 cores, 3200 MT/s memory, and introducing PCIe Gen4 and Intel Software Guard Extension (SGX) support to the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
Specifications
Processor type: Intel®
Processor family: Intel® Xeon® Scalable 8300 series
Intel® Xeon® Scalable 6300 series
Processor core available: 8 to 40 core, depending on processor
Processor cache: 12 – 60 MB L3, depending on processor
Maximum memory: 6.0 TB per socket, when populated with 256 GB DDR4 and 512 GB Persistent Memory
Memory slots: 16 DIMM slots per socket
Memory type: HPE DDR4 SmartMemory
Persistent memory type: Optional: Intel® Optane™ Persistent Memory for HPE
Persistent memory media capacity: Optional: 128 to 256 GB
NVDIMM type: Optional: Intel® Optane™ Persistent Memory for HPE
NVDIMM capacity: Optional: 128 to 512 GB
Memory protection features: HPE Fast Fault Tolerant Memory
Advanced ECC Memory
Online Spare Memory
Mirrored Memory
Drive supported: Up to 4 LFF SAS/SATA HDDs or SSDs
Up to 10 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs, depending on model
Infrastructure management: Included – HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
Optional – HPE iLO Advanced, and HPE OneView Advanced
Expansion slots: Maximum 3 PCIe Gen4, for detail descriptions please see QuickSpecs
Network controller: Wide range of speeds, cabling, chipsets and form factors. Please see QuickSpecs for network card choices
Storage controller: Included – Embedded SATA controller (AHCI or SR100i modes)
Optional – Variety of protocols -including NVMe-, port count, array utilities, and form factors. Please see QuickSpecs for storage controllers selection
Warranty: 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit http://www.hpe.com/support
Processor name: 3rd Generation Intel® Xeon® Scalable Processor Family
Processor number: 1 or 2
Processor speed: 3.6 GHz, maximum depending on processor
Memory, standard: 4 TB (16x 256 GB) RDIMM per socket
6 TB (8x 256 GB RDIMM and 8x 512 GB Persistent Memory) per socket, depending on processor model
Security: UEFI Secure Boot and Secure Start support
Intel® Software Guard Extensions (SGX) support
Immutable Silicon Root of Trust
Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits
Form factor: 1U Rack
Weight: SFF: 28.74 lb to 35.86 lb
LFF: 30.36 lb to 37.00 lb
Weight: SFF: 13.04 kg to 16.27 kg
LFF: 13.77 kg to 16.78 kg
Dimensions: SFF: 1.69 x 17.11 x 30.30 in
LFF: 1.69 x 17.11 x 31.50 in
Dimensions: SFF: 4.29 x 43.46 x 76.96 cm
LFF: 4.29 x 43.46 x 80.01 cm
Intel, Intel Xeon, and Intel Optane are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. All third-party marks are property of their respective owners.
