Are you looking for a 2U ultra-dense and rack-scale system providing the right balance of capacity, performance, and security for your data storage intensive workloads?
Description

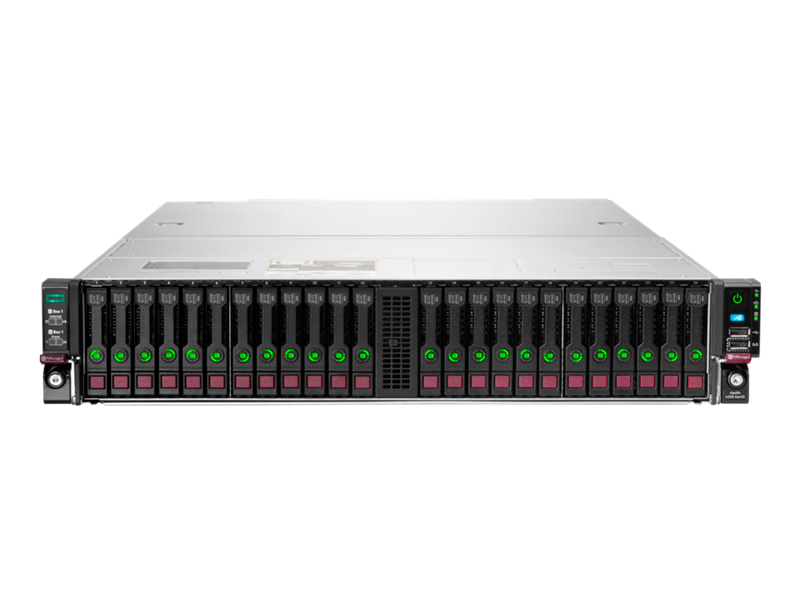

The HPE Apollo 4200 Gen10 server offers an architecture optimized for Big Data Analytics, Software-Defined Storage, backup and archive, and other data storage intensive workloads. Its unique, easily serviceable 2U design saves data center space with up to 28 LFF or 54 SFF hot-plug drives. It delivers accelerated performance with a superior bandwidth and balanced architecture, Intel® Xeon® Processors, and NVMe connected SSDs. The focus on security extends from FIPS 140-2 Level 1 validated storage controllers down to the system silicon level, taking full advantage of HPE innovations in firmware protection, malware detection, and recovery. With HPE GreenLake Flex Capacity and HPE Financial Services, you can combine the economic agility benefits of consumption-based IT with the performance and security of on-premise.
StorageUp to 24 LFF or 48 SFF front hot-pluggable drive bays; optional rear storage upgrade with 4 LFF, 2 SFF + 2 FHHL Riser, 6 SFF SAS/SATA or 6 SFF NVMe drive cages; support for SAS, SATA, or NVMe drives depending on rear drive cage kit
CPU Intel® Xeon® Scalable 8200/8100 series, Intel® Xeon® Scalable 6200R/6200/6100 series, Intel® Xeon® Scalable 5200R/5200/5100 series, Intel® Xeon® Scalable 4200R/4200/4100 series
Memory16 DIMM slots for HPE DDR4 SmartMemory, maximum 2.0 TB depending on processor model
Memory protection features HPE Advanced Memory Error Detection Technology, including Fast Fault Tolerance (selected memory options)
Network Embedded dual-port 1GbE and optional PCIe NICs up to 100 Gb/s
Boot capabilities Direct from SSD, HDD, Dual M.2 SSD, internal USB, MicroSD, network
System configuration(s) Front 24 LFF with optional 4 LFF, 2 SFF + 2 FHHL Riser, 6 SFF SAS/SATA or 6 SFF NVMe Rear Drive Cages; Front 48 SFF with optional 2 SFF + 2 FHHL Riser, 6 SFF SAS/SATA or 6 SFF NVMe Rear Drive Cages
Power Up to 2 power supplies, choice of 800W or 1600W hot-plug and redundant
Management features Includes HPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download); Optional HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced
Compatible operating systems Operating systems and virtualization solutions for HPE servers from Microsoft, Red Hat, SUSE, Ubuntu, VMware, and more. Additional information at: https://www.hpe.com/us/en/servers/server-operating-systems.html
Accelerator type supported HPE PCIe Workload Accelerators
Form factor 2U standard rack depth
Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
Weight 49.25 lb (empty), 89.51 lb (fully loaded)
Weight 22.34 kg (empty), 40.60 kg (fully loaded)
Dimensions 3.44 x 17.63 x 32.50 in (dimensions without bezel)
Dimensions 8.75 x 44.80 x 82.55 cm (dimensions without bezel)
