Do you need the most capacity with uncompromising performance, security, and intelligence in a datacenter-friendly 2U rackmount server footprint?
Description

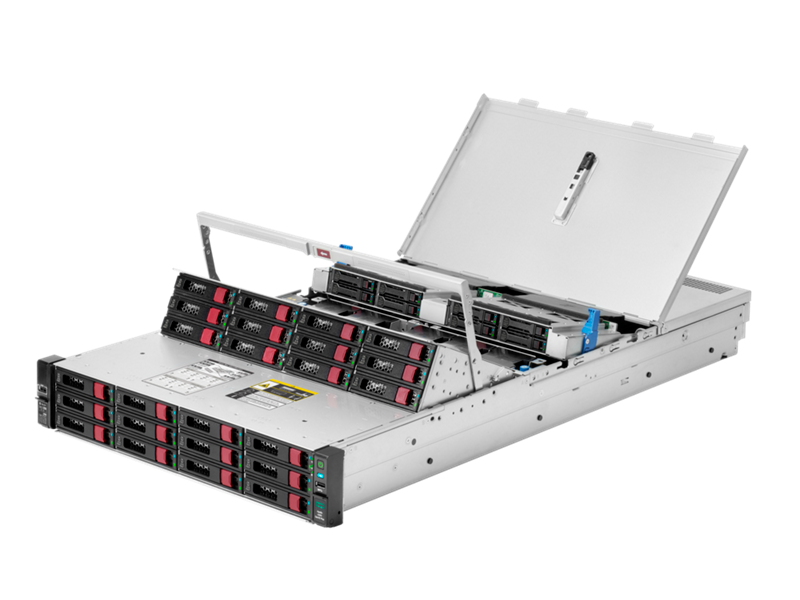

The HPE Apollo 4200 Gen10 Plus System, like the other members of the HPE Apollo 4000 family, is specifically designed to unlock the business value of data stemming from digital transformation (DX) and data infrastructure modernization, at any scale, and with ideal economics. It is designed for both ends of the data-centric workload spectrum – from deeper data lakes and archives to performance-demanding machine learning (ML), data analytics, hyperconverged infrastructure, and cache-intensive workloads. The HPE Apollo 4200 Gen10 Plus System provides the data infrastructure foundation for any successful data-driven organization.
Memory 24 DIMM slots for HPE DDR4 SmartMemory, maximum 4.0 TB per processor
Network Optional OCP 3.0 or PCIe NICs up to 200 Gb/s
Storage Standard 24 LFF SAS/SATA/SSD and 48 SFF SAS/SATA/SSD CTO models, optional storage upgrade 4 LFF SAS/SATA/SSD Cage 3, 8 SFF SAS/SATA/NVMe U.3 Tri-mode Cage 3, 2 SFF SAS/SATA/NVMe U.3 Tri-mode Cage 4, or 2 SFF SAS/SATA/NVMe U.3 Tri-mode Cage 5
Power Up to 2 power supplies, choice of 800W or 1600W hot-plug and redundant
Form factor 2U Rack
Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
CPU Intel® Xeon® Scalable 8300 series, Intel® Xeon® Scalable 6300 series, Intel® Xeon® Scalable 5300 series, Intel® Xeon® Scalable 4300 series
Memory protection features HPE Advanced Memory Error Detection Technology, including Fast Fault Tolerance (selected memory options)
Boot capabilities Optional HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device or HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit
System configuration(s) Front 24 LFF model supports optional 4 LFF Cage 3 or 8 SFF cage3, and front 48 SFF model supports optional 8 SFF Cage 3. The optional Cage 3 cannot be configured with CPU higher than 165W or Intel® Optane™ Persistent Memory. The 2 SFF Cage 4 and 2 SFF Cage 5 are available for both CTO models.
Management features Includes HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), and HPE InfoSight (with the free HPE iLO Amplifier Pack installed); Optional HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced
Compatible operating systems Operating systems and virtualization solutions for HPE servers from Microsoft, Red Hat, SUSE, Ubuntu, VMware, and more. Additional information at: https://www.hpe.com/us/en/servers/server-operating-systems.html
Accelerator type supported NVIDIA T4 16GB Computational Accelerator for HPE (planned for late 2021)
Weight 41.06 lb (empty), 106.61 lb (fully-loaded)
Weight 18.62 kg (empty), 48.35 kg (fully-loaded)
Dimensions 3.44 x 17.63 x 32.99 in (dimensions without bezel)
Dimensions 87.5 x 448.0 x 837.9 mm (dimensions without bezel)
