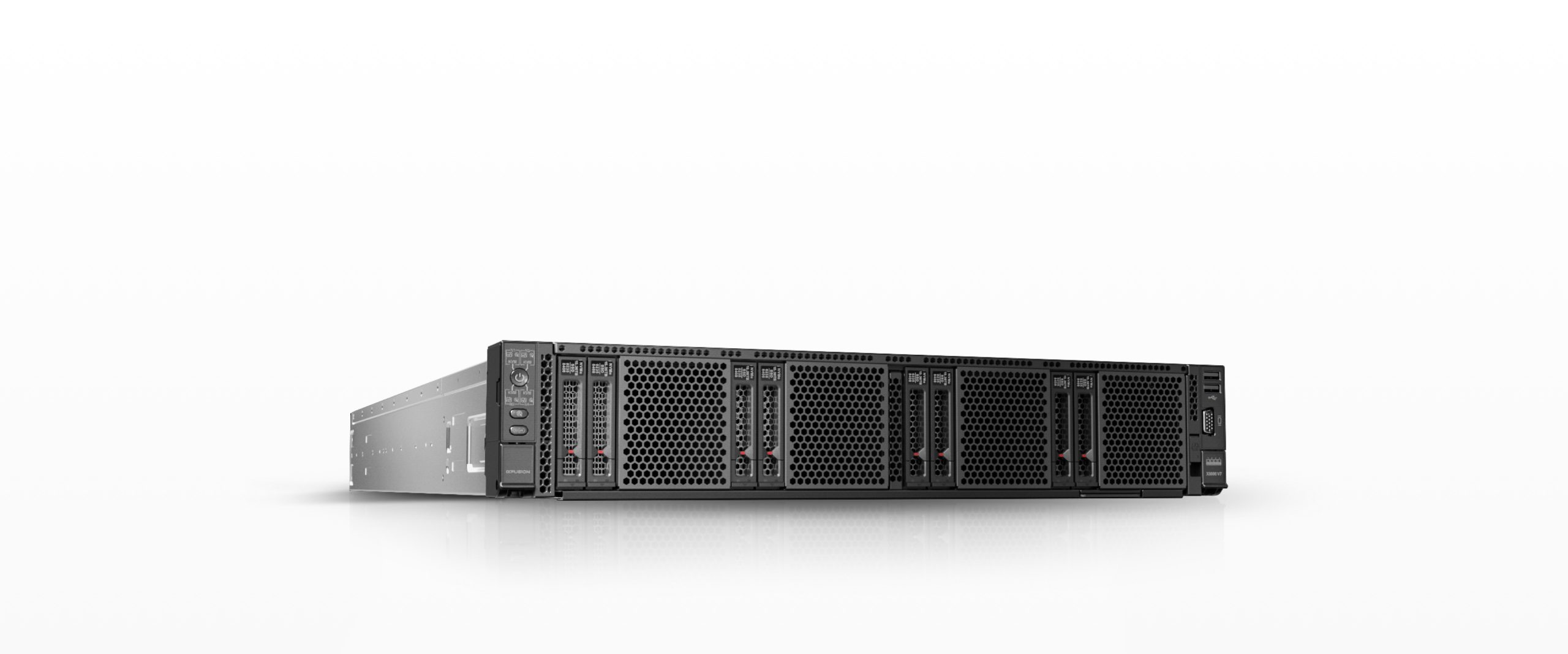

The FusionServer X6000 V7 server is a new-generation 2U high-density server that meets business requirements including Internet, high-performance computing (HPC), cloud computing, and data centers. Powered by architecture innovation in software-defined storage (SDS), big data, and SDI infrastructure, the FusionServer X6000 V7 server meets large-scale deployments.
Description
Technical Specifications
2U 4-node chassis
4 x 1U half-width 2-socket server nodes
4 x hot-swappable 1500 W, 2000 W, or 3000W AC PSUs in 1+1, 3+1, or 2+2 redundancy mode, configured based on the power consumption of the server and a single PSU
100 V to 240 V AC, 240 V DC
4 x hot-swappable xFusion-developed high-performance fan modules in N+1 redundancy mode
5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE Classes A1 to A4
CE, UL, FCC, CQC, VCCI, and RoHS
A maximum of four PCIe expansion slots per node, including one built-in RAID controller card slot, one FlexIO expansion slot dedicated for an OCP 3.0 NIC, and two standard PCIe expansion slots
447 mm x 899 mm x 86.1 mm (17.60 in. x 35.39 in. x 3.39 in.)
