Description

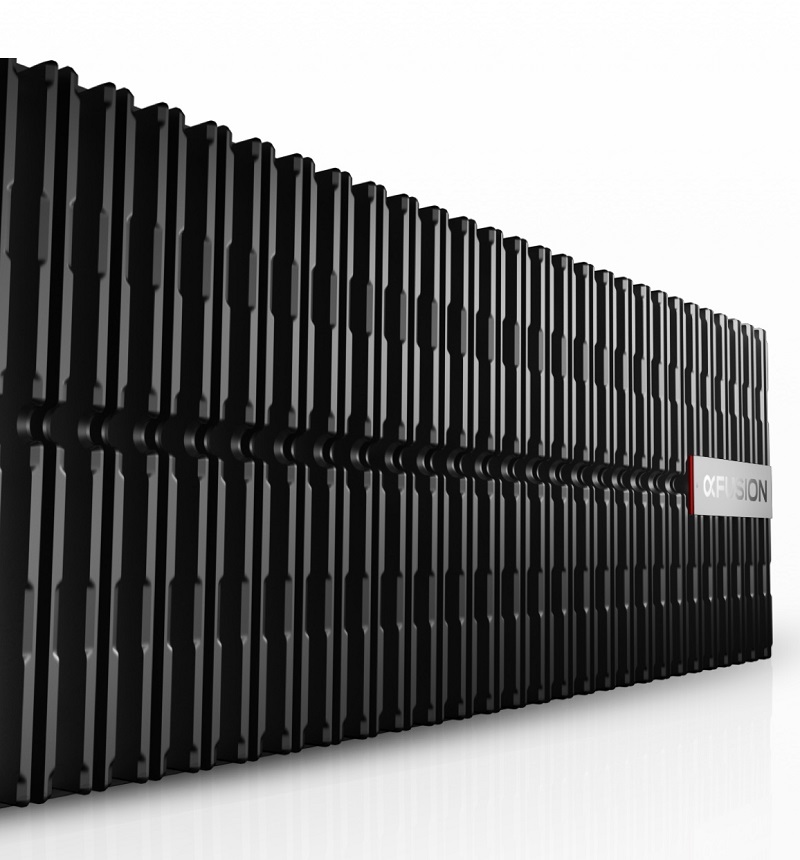

4U rack server
2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
Emmitsburg PCH
64 x DDR5 DIMMs
Hot-swappable drive configurations:
• 8, 24, 25, or 50 x front 2.5″ SAS/SATA drives
• 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs
• 24 x front NVMe SSDs
• 25 x front 2.5″ SAS/SATA drives and 24 x front NVMe SSDs
• 36 x front E1.S SSDs
• Up to 52 x 2.5″ drives
Flash storage:
• 2 x M.2 SSDs, supporting hardware RAID
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Multiple network expansion capabilities
1 x OCP 3.0 NIC, supporting hot swap
Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots
4 x dual-width GPU cards
14 x single-width GPU cards
8 x hot-swappable counter-rotating fan modules in N+1 redundancy
4 x hot-swappable PSUs in 2+2 redundancy mode:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 2000 W AC Titanium PSUs
1800 W (input: 200 V to 220 V AC)
2000 W (input: 200 V to 230 V AC)
2150 W (input: 230 V to 240 V AC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4
CE, UL, CCC, FCC, VCCI, and RoHS
L-shaped guide rails, adjustable guide rails, and holding rails
Chassis with 2.5″ drives: 175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in.)
