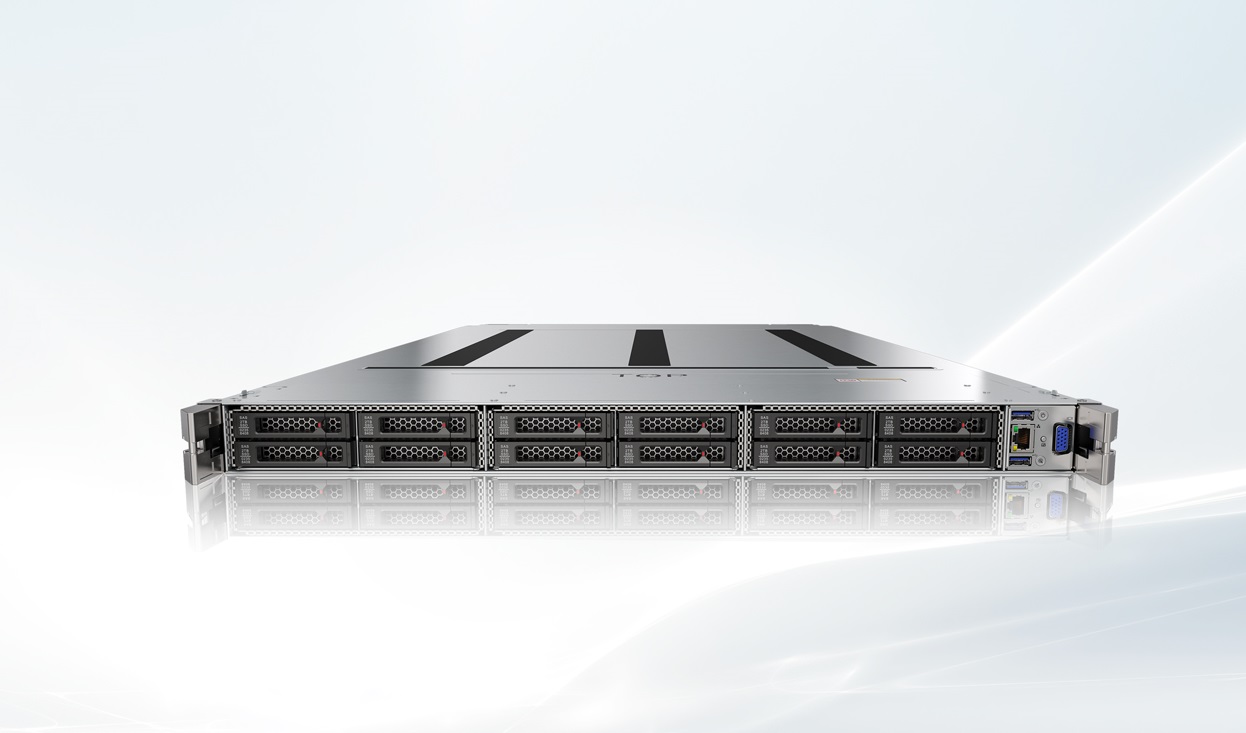

The DH122E V6 is a 1U liquid-cooled server. The server is designed for improving the system computing density, featuring high computing performance, high liquid cooling ratio, and easy O&M. The DH122E V6 is ideal for high-density application scenarios, such as data centers, cloud computing, big data, and Internet applications.
Description
Technical Specifications
2 x 3rd Gen Intel®Xeon®Scalable processors (Intel Whitley Platform all series Ice Lake processors), with up to 300 W TDP per processor
Intel C621A
Up to 32 x DDR4 DIMMs, up to 16 x DDR4 DIMMs when the memory liquid cooling is configured
Multiple hot-swappable drives with the following configurations:
Up to 2 x SAS/SATA drives and 10 x SAS/SATA/NVMe drives
RAID 0, 1, 10, 5, 50, 6, or 60, supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Expansion capability of multiple types of networks
4 x PCIe slots, including 1 x dedicated PCIe slot for RAID controller cards,and 3 x standard PCIe 4.0 slots
7 x hot-swappable counter-rotating fan modules in N+1 redundancy
One liquid-cooling plate can be configured. The specifications are as follows:
2 x CPUs and VRD liquid cooling, with liquid cooling ratio up to 65%
2 x CPUs, 16 x DIMMs, and VRD liquid cooling, with the liquid cooling ratio up to 80%
One DC power module can be configured. The specifications are as follows:
1600 W PSU
3000 W PSU
The management system includes the BMC management systems of server nodes, the cabinet management system, and the management systems of switching nodes.
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle Ubuntu, Debian, and openEuler
Power-on password, administrator password, trusted platform module (TPM) 2.0, front bezel, and secure boot
5°C to 45°C (41 °F to 113 °F) (compliant with ASHRAE Classes A1, A2, A3, and A4)
CE, UL
43.2 mm x 536 mm x 900 mm (1.70 in. x 21.10 in. x 35.43 in.)
