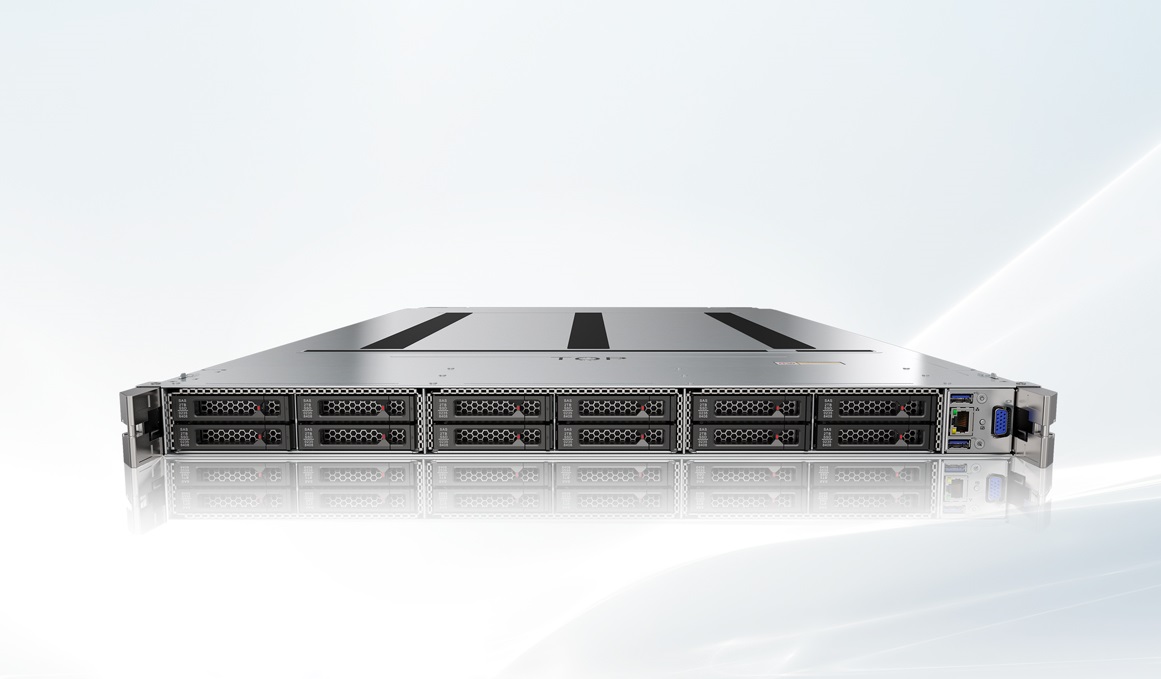

DH120E V7 is a new-generation 1U 2-socket liquid-cooled server node designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecom service applications. It features flexible expansion, high performance computing, high reliability, simplified management, and easy deployment. DH120E V7 is ideal for core IT services, cloud computing, virtualization, high-performance computing, enterprise or telecom service applications, and other complex workloads.
Description
Technical Specifications
Two 4th generation Intel® Xeon® Scalable processors (Intel Eagle Stream Platform all series Sapphire Rapids CPUs), with up to 350 W TDP per processor
Emmitsburg PCH
A maximum of 32 DDR5 DIMMs with up to 4800 MT/s memory speed; memory liquid cooling (optional)
Hot-swappable drive configurations:
Up to 12 SAS/SATA/NVMe drives
RAID 0, 1, 10, 5, 50, 6, or 60; supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Multiple network expansion capabilities; up to four standard HHHL NIC slots, which can be configured as required
Up to four PCIe 5.0 x16 HHHL slots and one HHHL slot for standard RAID controller card/one self-developed RAID controller card
Seven fans, supporting N+1 redundancy
One cold plate for liquid cooling of either of the following configurations:
Two CPUs and VRD
Two CPUs, 32 DIMMs, and VRD
One 3000 W DC PSU
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
The iBMC supporting standard interfaces such as Redfish, SNMP, and IPMI 2.0, providing a HTML5/VNC KVM-based remote management interface, and supporting out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
SLES, Red Hat, VMware, Ubuntu, Oracle Linux, and FusionOS
Administrator password, TPM 2.0, and secure boot
Operating temperature: 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4
CE, UL
43.2 mm x 536 mm x 900 mm (1.70 in. x 21.10 in. x 35.43 in.)
